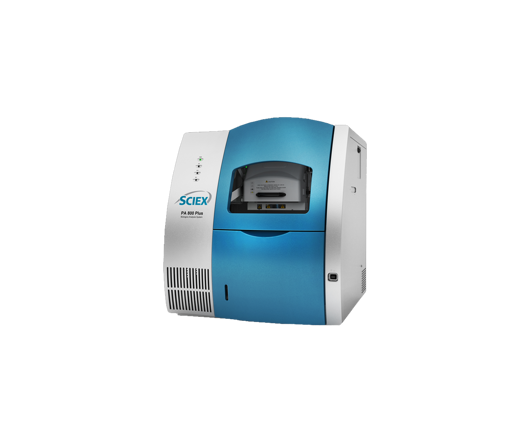

PA 800 Plus

Supplier Sciex
Denmark Sweden Norway

Perform consistent, and compliant biotherapeutics characterization faster than ever. Variations in biotherapeutics affect the safety and efficacy of patient treatment and the reputation of your organization. With the PA 800 Plus Pharmaceutical Analysis System, you can confidently safeguard the success of your biologics. Run multiple characterizations from a single system that biopharma labs depend on, and produce qualitative and quantitative analyses, with speed and confidence.

The PA 800 Plus Pharmaceutical Analysis System is a robust analytical platform that provides characterization of product purity, charge heterogeneity, and glycan analysis, to help you with the development and quality control of therapeutic proteins.

  • Even small variations in temperature can affect migration time. PA 800 Plus delivers repeatable results with exclusive recirculating liquid coolant to precisely control separation temperature.

Develop and lock-down methods applicable to QC or regulated environments. PA 800 Plus easily transfers methods using robust, automated assays with proven portability – perfect for global multi-user, multi-instrument organizations.

Data acquired by some technologies is often manipulated. However, only raw, unprocessed data can provide the confi dencecritical to both you and regulatory agencies for product submission and commercialization. The PA 800 Plus supports 21CFR211.194 compliance by providing raw, unmanipulated data. Regulatory requirements can be easily met where unmanipulated raw data may be required.

You can do ALL this on the PA 800 Plus:

  • Monoclonal Antibodies
  • Peptides and Proteins beyond mAbs
  • Plasmids and Nucleic Acid Therapeutics – high-resolution and quantitative
  • Other biotherapeutics

Height: 29.2 in (74.2 cm)
Door Open: 38.8 in (98.6 cm)
Width: 25 in (63.5 cm)
Depth: 28.4 in (72.1 cm)
Weight (uncrated): 188 lbs (85.3 kg)
(includes photodiode array detector)

Electrical Requirements
Voltage: 100 - 240 V; 50/60 Hz
Voltage Range:
1 to 30 kV programmable
in 0.1 kV increments

Current Range
3 to 300 μA programmable
in 0.1 μA increments

Pressure Delivery Range
-5 to +100 psi

Sample Temperature Control
4 - 60° C

Capillary Temperature Control
15 - 60° C

Sample Trays
2 x 96-well plates
2 x 48 universal vials

200, 214, 254, 280 nm standard fi lter
190 - 600 nm (custom fi lter option)

Diode Array
190 - 600 nm (programmable)
0.5 - 32 Hz scan collection frequency

Laser Induced Fluorescence (LIF)
300 - 700 nm excitation range
350 - 750 nm emission range
0 - 1000 RFU

Source Lasers with 3 mW Power Output
488 nm solid-state laser
(included in A66528)
