Exelia System

Leverantör Fresenius Kabi
Tillgänglig
Sverige

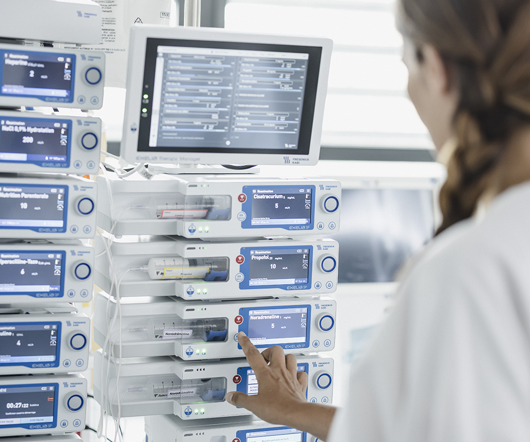

The complete infusion workstation Exelia is a unique infusion system that combines a centralised touch screen with new pumps to help you achieve targeted therapeutic effects for critical patients in the most effective way. The perfect symbiosis between modularity and clinical applications with 40 years of experience applied to an intelligent design to be integrated in the ICU of the future.

Syringe Infusion Pump
- 4.3” reactive colour touchscreen for highintuitivity and quick learning curve.
- Rotary dial for fast and safe programming.
- Pusher anti-bolus brake technology that reducesthe risk of bolus at syringe installation.
- Automatic pressure threshold setting and improved Dynamic Pressure System for fast occlusion detection even at low flow rates.
- Up to 19 custom profiles for personalized device configurations.
- Wide flow rate range from 0.01 to 1200 mL/h and an accuracy of +/- 3 %.

Exelia SP data sheet

Volumetric Infusion Pump
- 4.3” reactive colour touchscreen for high intuitivity and quick learning curve.
- Rotary dial for fast and safe programming.
- Automatic pressure threshold setting and improved Dynamic Pressure System for fast occlusion detection even at low flow rates.
- Up to 20 custom profiles for personalized device configurations.
- Wide flow rate range from 0.1 to 1800 mL/h and an accuracy better than +/- 5 % in most clinical situations.
- > 100 000 data events log.

Exilia VP data sheet

Pump management unit
- Exelia Combox synchronizes drug libraries and device configurations for up to 24 pumps.
- Visible 360° LED to visualize the system status.
- Works with standardized communication protocol, ensuring seamless IT integration.
- Accommodates up to 12 pumps for power centralization.
- Compatible with Exelia SP and VP infusion pumps.
(*) Exelia ComAdaptor is used to exchange data between Exelia Combox and a second column of 12 modules.

Exilia Combox data sheet



Rack System
-Exelia Link is a robust and modular column.
-Up to 3 Exelia Link can be combined to facilitate the organization of up to 12 infusion pumps.
-Two columns can connect a system of up to 24 devices.
-Accommodates up to 12 infusion pumps for power centralization and advanced communication capabilities.
-Compatible with Exelia SP and VP infusion pumps.

Exelia Link data sheet

Pump management unit
- Control up to 24 pumps from the large touchscreen.
- Adjustable height for utmost comfort, even when wearing gloves.
- Centrally program pumps using predefined drug protocols.
- Benefit from the Infusion Relay feature to safely administer catecholamine drugs in the most convenient way.
- Monitor patients closely and graphically via infusion history spanning several days.
- Grasp a global overview of current infusions to optimise workflow oganisation.



Rack system
- Compatible with Exelia Syringe and Volumetric infusion pumps.
- Exelia DuoLink facilitates transportation of up to 2 Exelia SP or VP thanks to the quick pump plugging mechanism.
- Supplies electric power to 2 pumps.
- Quick fastening on a pole or rail.

Exelia DuoLink data sheet
