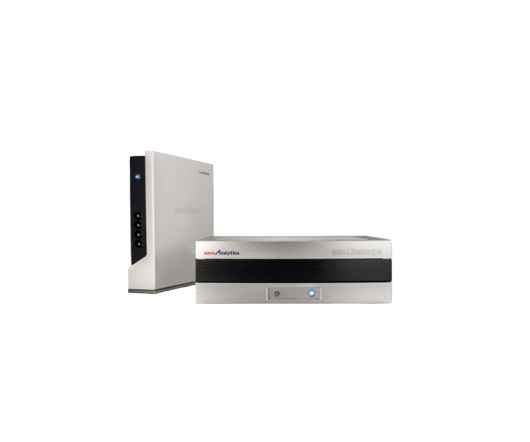

CELLZSCOPE Automated Cell Monitoring System

Leverandør nanoAnalytics
Tilgængelig
Danmark Finland Norge Sverige

cellZscope systems measure the transepithelial electrical resistance TEER of cell layers automatically under physiological conditions.

  • Accurate impedance readouts
  • Compatible with standard cell culture inserts
  • Computer-controlled recording of TEER and Ccl

cellZscope models are ideally suited for quality control of your cell lines or for studying the influence of substances such as drugs, toxins etc. on the barrier function of cell layers.

The systems are compatible with a variety of standard cell culture inserts from different manufacturers. Electrodes for use with “24-well” type, “12-well” type, or “6-well” type inserts are available. No additional device-specific disposables are required.

Current portfolio:
CELLZSCOPE E
The entry-level model with 6 individual wells

CELLZSCOPE +
24 individual wells, measurement of TEER and Ccl

CELLZSCOPE 2
24 individual wells, measurement of TEER and Ccl with handy docking station

CELLZSCOPE 3
The high-end cellZscope for measurement of TEER and Ccl with up to 96§ individual wells

Impedance Based Cell Monitoring
From Short-Term Tight Junction (TJ) Dynamics To Long-Term Layer Formation
