CrestOptics Spinning-Disk Confocal Solutions

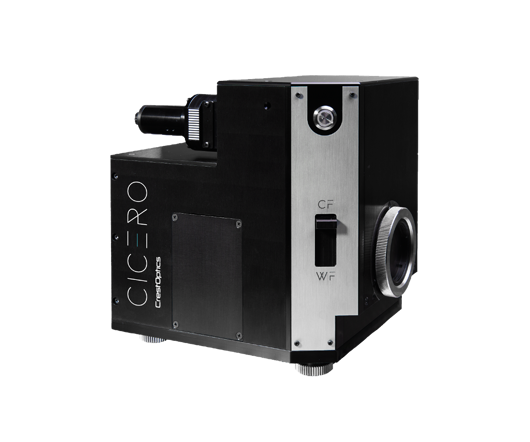

A flexible, compact but full-fledged spinning-disk confocal solution, CICERO makes high-end fluorescence imaging accessible to every laboratory enabling a variety of applications. CICERO is a complete widefield and spinning disk solution, it can be integrated into any imaging setup transforming it into a user-friendly and reliable confocal system. Life sciences, metrology, and material sciences are among the disciplines relying increasingly on high-resolution 3D imaging.
Product Specification
FOV
Up to 22mm
Bypass Mode
Yes (manual)
Light Source
LED (3mm LLG) and multimode Laser (SMA fiber)
Spectral Range
Excitation: 390-750 nm; Emission: 430-850 nm
Camera
C-mount camera
Resolution
Lateral Resolution (FWHM): ~230 nm (100X NA 1.45)
Axial Resolution (FWHM): ~600 nm (100X NA 1.45)
Software
NIS Elements/μManager/ VisiView®/Volocity/
SDK available for integration
Configurations
Upright and Inverted Microscope
Weight
7.65 Kg
Dimensions
166.20 (w) x 234 (l) x 228.60 (h) mm
