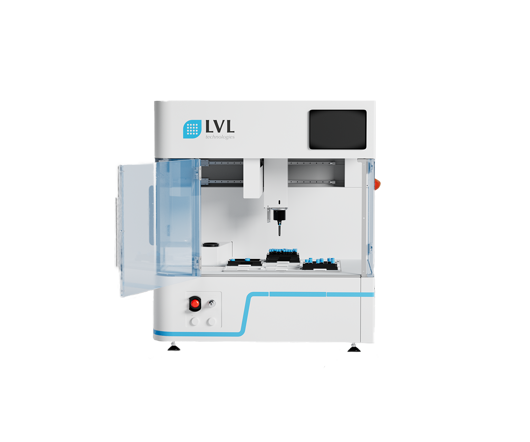

TLM 864
Mark tubes with your own specific information without time consuming and non-secure methods of labelling and lettering with the new TLM 864 Tube Laser Marker from LVL Technologies.
The information to be applied is created and transmitted from an external PC, and the device is configured via an integrated touch screen.
Product Information
No more need to affix labels.
Key Feature: SAFE compatible.
Labeling of up to 9 racks simultaneously. Individual double-sided laser coding.
Flexible for three SBS/ANSI formats: SBS 96, 48 and 24. Coding of tubes can be lasered from two sides.
Up to 500 tubes per hour.
Convenient CSV data exchange format
Product Specification
Dimensions
910 mm x 815 mm x 720 mm (H x W x D)
Weight
120 kg
Power supply
100-240V, 50/60Hz max. 16A at 230V
Noise Level
< 72 dB (A)
Rack Positions
9
Rack types
SAFE® SBS 96, 48, 24
Speed
approx. 500 tubes per hour
File exchange format
CSV
