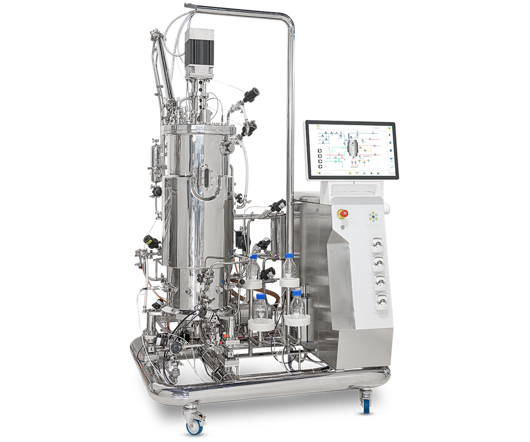

M Series
Flexible, affordable, stainless-steel pilot system for precise control, monitoring, scalability and easy sterilisation.
- Easy-to-use stainless-steel bioreactor vessel with scotch-brite finishing at pilot scale with shorter lead times at more affordable price
- Configurable and adaptable to different processes and organisms (microbial, fungi and microalgae) with real-time monitoring, control and automation of traditionally manual process steps
- Wide range of selectable sensors (pH, O2, CO2, redox, TCD, VCD) fully integrated and controlled via Leonardo software with logic parser (computational tool that interprets logical expressions, ideal for bioprocessing recipes)
- Thoughtfully designed for easy sterilization and optional in-situ cleaning to minimize downtime
- Robust platform in stainless steel, providing an easy and simplified way to scale up, scale out or manufacture, saving valuable money and time
Product Specification
Volume: Available in 30, 50, 75, 100, 150, and 200 L total volume
Ratio: 3:1 for all volumes
Thermoregulation: Water jacket and 2 heat exchangers
Aeration: Standard: Air; Configurable: up to 3 TMFCs
Mixing: Rushton, marine, or pitched-blade
SIP: Steam generator
Pumps: Standard: 2 fixed pumps; Configurable: up to 6 steppers or fixed
Pressure: Up to 3.5 bar(g)
Sensors: Standard: pH, DO2; Configurable: redox, conductivity, dCO2, TCD, VCD
Sampling/Harvest: Standard: manual sterilisation; Configurable: automatic sterilisation
Mechanical seal: Standard: single
Options: Condenser; CIP; Anti-foam/level sensor; Steam bridges; Gravimetric flow control; Vessel weight
