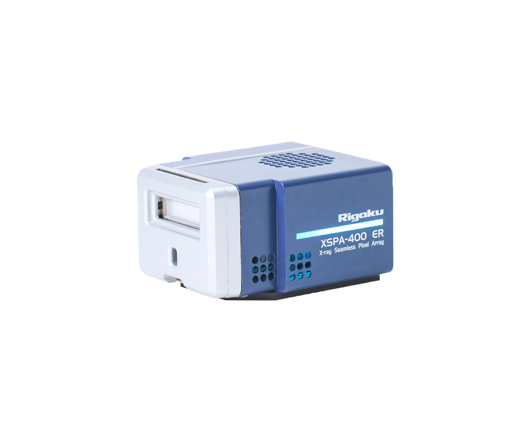

High energy resolution: The high energy resolution of the XSPA-400 ER supresses the fluorescent X-rays originating from the sample, thereby reducing background, enabling highly sensitive measurements of samples containing transition metals, such as iron and steel compounds and battery materials.
Seamless multidimensional pixel detector: Since it supports 0, 1, and 2 dimensions, it is possible to obtain general X-ray diffraction patterns and shape measurements of Debye Scherrer rings, making it possible to measure a wide range of samples, from powders and bulk materials to thin films. In addition, the seamless detector eliminates the need for an IC boundary correction because all pixels have the same shape, allowing a uniform image to be obtained.
High linear coefficient and wide dynamic range: Observations from low to high intensities are possible while maintaining high energy resolution.
Filterless Kβ measurements: Taking advantage of the high energy resolution feature, measurement without a Kβ filter is also possible.
High utility utilizing detection area: The detector orientation can be easily switched on its pedestal, making it possible to select between modes with priority given to intensity or angular resolution.
