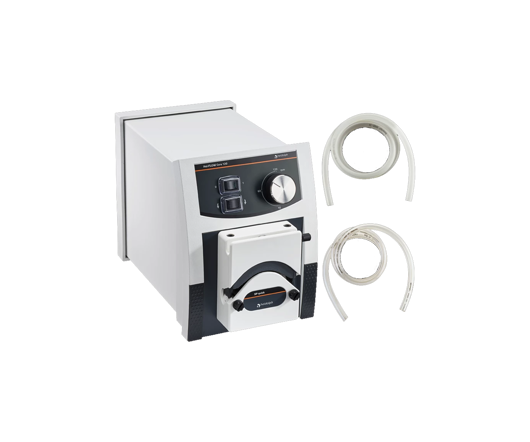

Peristaltic Pumps

Supplier Heidolph
Denmark Sweden

When configuring the right system, Heidolph know how important the flow rates, the dimensions of the tubing and their chemical resistance are. For this reason, in addition to our pump drives, Heidolph offer a wide range of single and multi-channel pump heads as well as cassettes and tubing. Depending on the process objective of your application, your individual system solution can be put together from this.

The pumps of the Hei-FLOW series are self-priming and do not require seals or valves. Analog and digital interfaces, for example for connecting the remote control for easier operation. Thanks to the high precision, minimum flow rates of only 0,005 ml/min can be conveyed. The drive for a standard pump head can be converted to a multi-channel system in minutes. The clearly arranged control panel is self-explanatory and makes everyday use easier. Efficient use of valuable laboratory space: The pumps can be stacked two-fold. Basically, the pump heads do not have to be cleaned as they pump contamination-free – this saves cleaning between two applications. There are 3 pump types, each with two different gear stages – fast or powerful.

Flow rates of single-channel pumps
0.45 – 4,500 ml/min

Flow rates multi-channel pumps
0.005 – 277 ml/min

Flow rate accuracy*
±1% - ±5%

Speed range
5 rpm - 600 rpm

7.1kg - 7.6 kg

Dimensions w/d/h
166×256×225 mm

Protection class
IP 55
