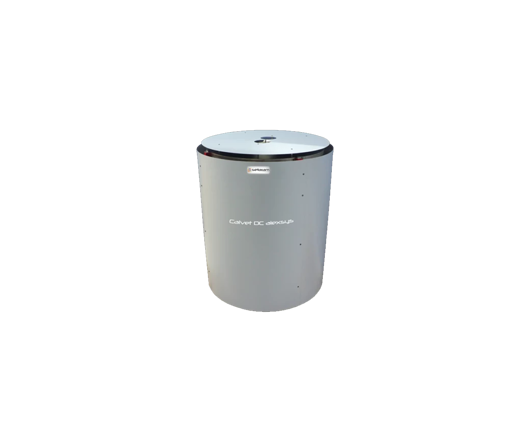

CALVET DC ALEXSYS

Supplier Setaram
Available
Finland Norway Sweden

CALVET DC ALEXSYS uses a 3D sensor based on thermocouples’ networks, dedicated to the drop calorimetry method. Drop calorimetry consists of letting a sample fall (at room temperature) into the sensor (at high temperature).

Interested in the stability of metals, alloys, ceramics or minerals? You can enjoy drop calorimetry measurements: heat of formation, heat capacity, heat content. They help to predict materials’ reactivity and structure changes. They are also used in methods for calculation of phase diagrams (like CALPHAD).

Best in class high temperature measurements by drop calorimetry, improved heat capacity, heat of phase transitions, heat content measurements.

Highly sensitive high temperature calvet 3D sensor, dual drop capability with a measurement drop tube and a reference drop tube.

Isothermal conditions up to 800 or 1000 °C.

Fine control of the sample reactivity, and preserved sensor lifetime with an Inconel protective tube, a chemically inert silica based drop tube with optional platinum liner, and the control of the atmosphere above the sample

Temperature
Temperature range (°C)
500 to 1000

Temperature stability (°C)
+/- 0.2

Heat & Heat Flow
Calorimetric precision (%)
+/- 1%*

RMS noise (μW)
30

Resolution (μW)
12.5

General
Cells volume (ml)
Up to 28 ml (quartz cell) or 20 ml (platinum crucible)

Weight (kg)
300

Dimensions (Diameter /Height)
800 / 880 mm, Separate electronics

Power requirements
230V-50/60 Hz
