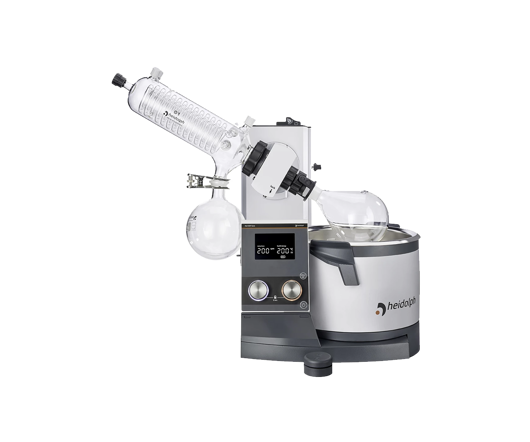

Rotary Evaporators

Supplier Heidolph
Available
Denmark Sweden

In close cooperation with users, Heidolph developed the Hei-VAP series of rotary evaporators with an emphasis on the essentials: well thought-out details with a focus on features and functions to facilitate everyday laboratory work. Versatile combinations with glassware and extensive accessories offer the right configuration for every application. Perfectly matched peripherals top off the rotary evaporators – complete systems, all from one source.

All models are available as a manual lift or motor driven lift variant. The patented Easy-Clip retort clamp facilitates attaching and changing the evaporation flask considerably. Stuck ground joints are separated gently, to prevent glass breakage. The removable control panel with digital display or innovative touch display with the optional cable extension enables fast and convenient operation outside closed fume hoods. Intuitive operation, since all settings are made centrally at the control panel. Used in conjunction with the Control Box it becomes the central control unit and additionally controls the vacuum pump and Hei-CHILL recirculation chiller. Easy venting thanks to polished chiller setup: Venting cap with PTFE inlay and threaded joint prevents sticking glass – completely without greasing. A vent valve with refill function is available as an option. FDA compliant materials for all components actively and passively touched by media enable an extended range of applications. Practical unlocking for individual setting of the tilt angle from 20° to 80° and vertical stop for limiting the immersion depth up to 150mm. The optionally available automatic Hei-VOLUME Distimatic module enables fully automatic filling.

Stroke
155 mm

Speed range
10–280 rpm

Rotation speed indicator
3.5” LCD display

Heating power
1,300 W

Temperature range heating bath
20–210 °C

Heating bath setting accuracy
±1°C

Overtemperature protection
Cut-off at 5 °C above set temperature (with separate Pt 1000)

Heating bath diameter
255 mm

Heating bath volume
4.5 l

Evaporation flask max size
5l

Weight without glassware
16 kg

Degree of protection
IP 20
